Elizabeth Line

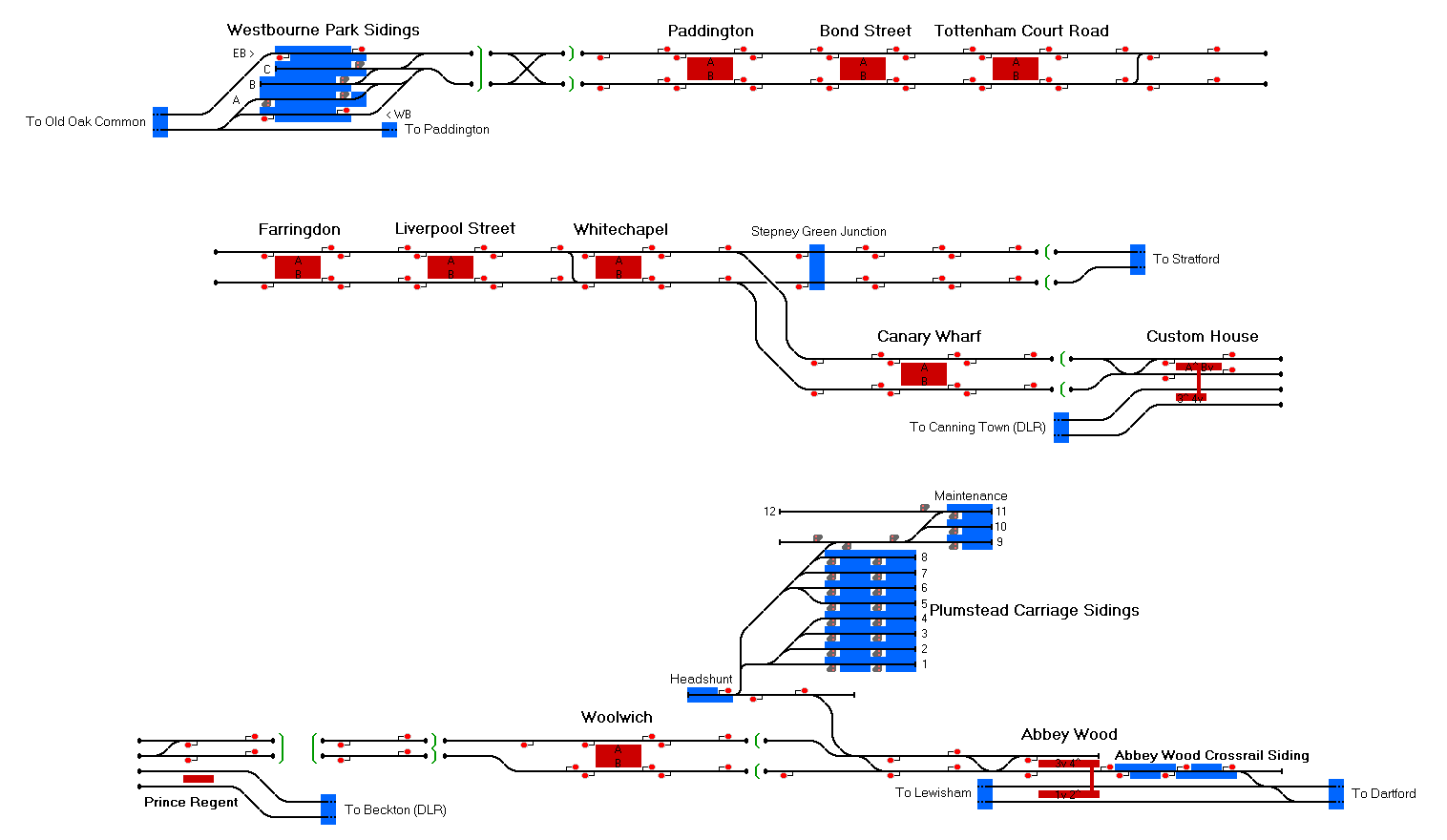

This is a layout of the central section of the Elizabeth Line, between Paddington and Abbey Wood.

Only registered users can download this free product.


This layout simulates the central section of the Elizabeth Line, running through newly opened tunnels under, in the summer of 2022.

The line operates a service between Paddington and Abbey Wood. At this time services do not continue past Paddington or towards Shenfield from the tunnels, instead requiring a change at Paddington or Liverpool Street, with further services running from the mainline stations.

The timetable simulated here has a peak service frequency of 12 trains per hour in each direction, with a timetable start of 4:20, running to around midnight.

This simulation can be run at higher rates in early or late hours, but during normal operations is only possible to operate at real speed.
