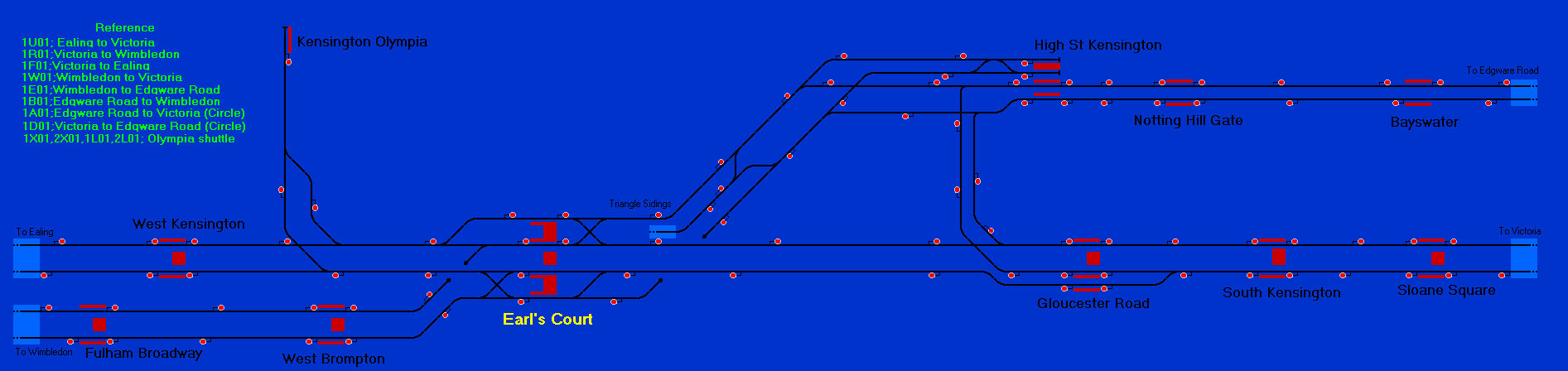

This is my second layout using Albert Ball’s superb program, and after the relative calm of the Aldgate Junction, things get a bit more hectic with Earl’s Court.
I have used the Quail Track Diagrams map book but certain junctions have been simplified especially the Triangle Sidings and the throat of High Street Kensington station. The positions of the signals are pure guesswork as I have no diagrams of the actual layout. If anyone has access to the real-life signalling diagram please let me know!
The service pattern is as follows:
Ealing to Victoria
Wimbledon to Victoria
Wimbledon to Edgware Road
Edgware Road to Victoria (Circle Line)
Olympia shuttle
With the exception of the Olympia service which runs every 15 minutes, all the services have a 6 minute frequency. All services are set to repeat 20 times then stop. Feel free to edit the timetable if that isn’t enough fun!
I am also working on an extended version of this simulation with the District branches to Ealing Broadway/Richmond and Wimbledon covered to each termini. As I write this I have the map more or less done (see project & sneak preview pages), but the timetable is proving to be a formidable task. Keep checking the website for updates.
You can find the project on the dedicated project page.
